WELCOME TO MAGS
TAKE YOUR IDEAS TO NEW HEIGHTS WITH CREATIVE GLAZING SOLUTIONS BY MAGS
At MAGS our philosophy is simple to create commercial window and door systems that offer streamlined and efficient solutions to the commercial construction and high-end residential market.
Architects and their clients are constantly exploring new ways to express themselves and interact with their surroundings. In answer to this need, we offer the MAGS range of products. An innovative selection of cutting-edge commercial glazing systems that raise the bar and inspire great outcomes making them ideal for any climate or environment.
Take your ideas to new heights with MAGS
This is our motto. We want to be a true business partner, sharing our worldwide knowledge with fabricators, architects and other stakeholders. With our open and proactive collaboration approach we can realize the highest standards and get the best results in any project, big or small, together.
Mags is the market leader in Belgium and we have acquired a strong market position in over 40 countries, each with its own offices.
The Mags Campus
The Mags Campus is the corporate headquarters of Mags and is located in Duffel (Belgium). The Mags Campus is the inspiring and dynamic work environment of all Mags employees and a place for partners to experience the latest products and innovations in full interactivity
The Mags Experience
At the Mags Campus, you can visit the Experience Centre that is designed to bring people together and inspire you with our latest solutions and state-of-the-art technologies for architectural building solutions. In the Experience Room, you can discover our unique offering, assisted by inspiring digital applications. For a full immersive experience, a visit to AVALON can be booked where you can visit future buildings through a shared virtual reality experience.
The Mags Technology
In addition to these facilities, the Mags Campus also includes the Technology Centre, the largest privately owned innovation and testing centre, for the validation of architectural and high-tech window, door and façade concepts. One of the showpieces of the Technology centre is a state-of-the-art testing wall for façades with a height of 15 meters, allowing air-wind-water testing of multi-storey façades. This part of the Mags Campus also accommodates the ‘R-Lab’; our dedicated lab for prototyping and 3D printing, resulting in faster and more accurate R & D tracks.
IMPRESSIVE GROWTH
Mags Aluminium is a part of the group Mags. This international group has experienced massive growth in the last 30 years. Having grown more than 200% over the last 10 years, Mags Aluminium is considered by all players in the industry as one of the leaders in its business. In 2018 Mags achieved a turnover of 537 million euros and has over 2200 employees throughout the world.
SLIDING WINDOWS
& DOOR
MS11
MS16
MS18
MS20
MS25
MS40
MS65
MSTH70
MS11
MS11
Premium System Windows & Doors

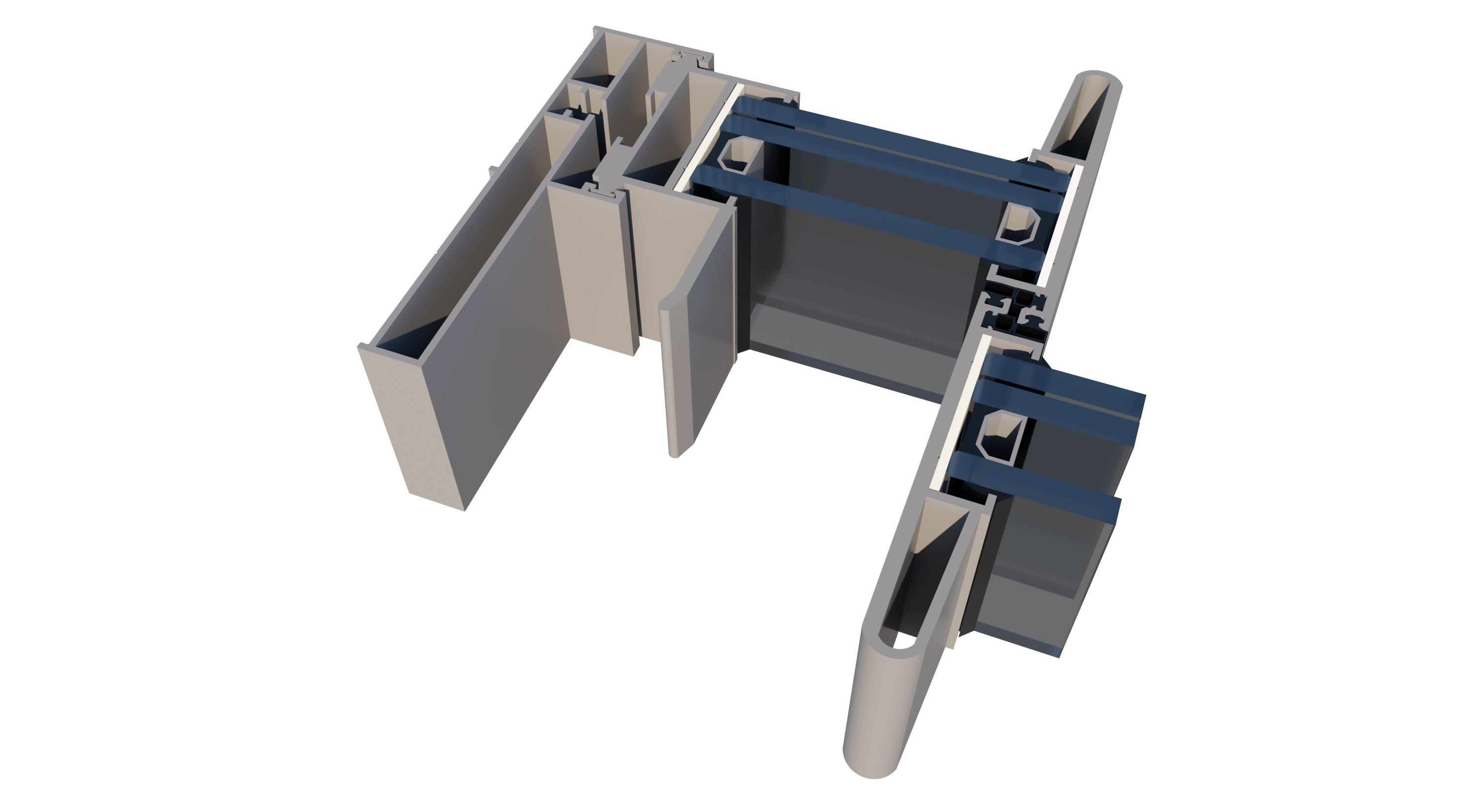

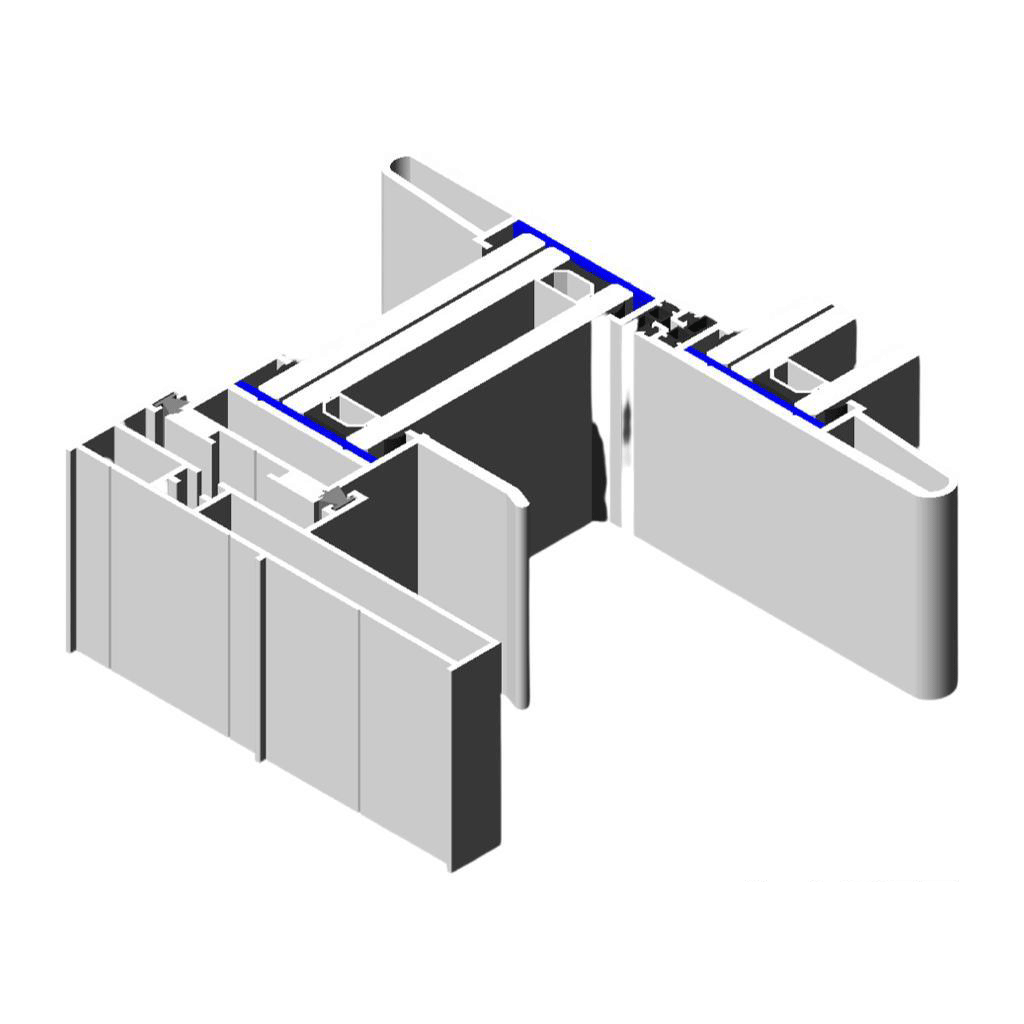

MAGS LA VISTA SLIDING SYSTEM MS11
Enjoy view with ultimate performances! The ultra-slim
design of the MS11 sliding door creates large transparent surfaces,
with a light, sleek and elegant appearance.
This fully transparent and accessible sliding door seamlessly extends
the house’s interior to the outside. Despite the minimal visual sidelines,
the systems high strength allows MS11 to carry the weight of a large
sliding glass pane up to 300 kilograms. Fixed panels up to 600 kg.
This in combination with the high energy performance and the
minimalistic look makes this product the best solution architecture. Availvble inbottom s s track and aluminum track system.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
31mm
|
||||
|
Visible width / height
|
Vent
|
35mm |
||||
|
Meeting Setion |
42mm
|
|||||
|
Visible width / height
|
Frame
|
2Track : 110mm , 3Track : 165mm
|
||||
|
Vent
|
42mm
|
|||||
|
Center Interlocking view
|
|
11mm
|
||||
|
Center Interlocking Depth
|
|
100mm
|
||||
|
Maximum Vent Height
|
|
3600mm
|
||||
|
Maximum Vent Weight
|
|
300 kg
|
||||
|
Glass Thickness
|
|
12mm-32mm
|
||||

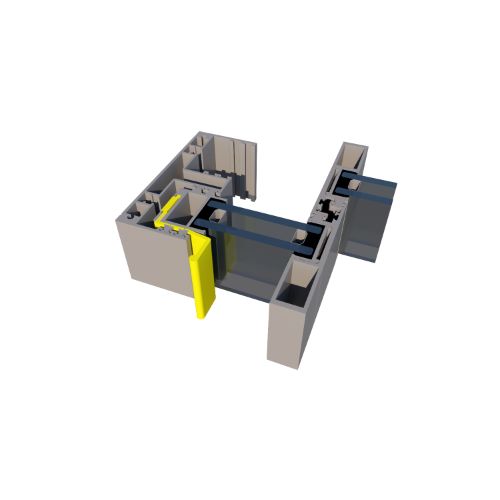

MS16
MS16
Premium System Windows & Doors

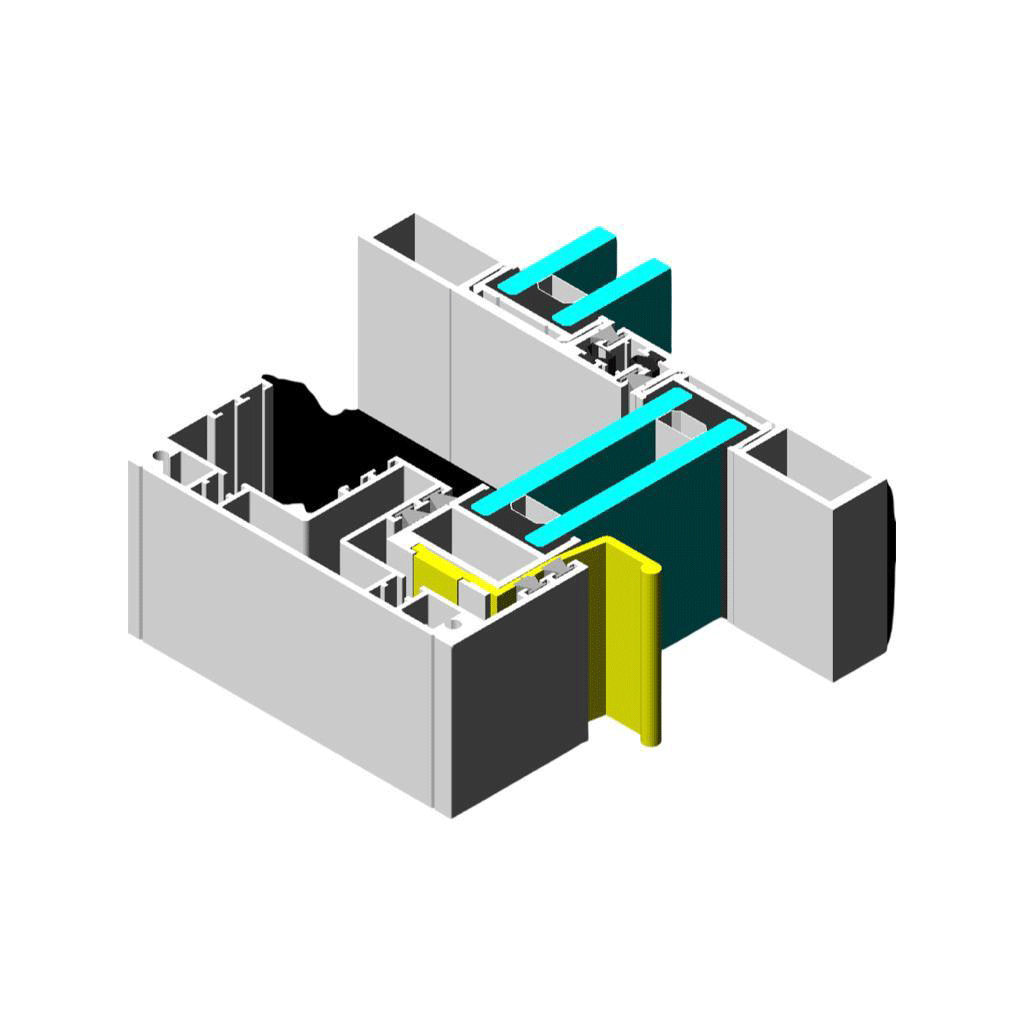

MAGS ULTRA SLIM MS16 is a high insulated sliding system with slim profiles and a concealed
frame that combines comfort with elegance. Thanks to the ultra slim
design, this sliding window allows for maximum natural light and provides an
optimal panoramic view. The integrated innovative technologies guarantee
ultimate performances with regard to wind and water tightness and thermal
insulation, meeting with the highest standards.
The sliding system MS16 offers you all design freedom to create
contemporary living spaces, combining ultimate brightness with maximum
comfort.
This sliding system offers a wide range of opening possibilities, from
elements which slide over 2- and 3-rail solutions, allowing you to open up to 6
leaves, over a very slim central closing option of only 42 mm wide.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
45mm
|
||||
|
Visible width / height
|
Vent
|
6mm |
||||
|
Meeting Setion |
40mm
|
|||||
|
Overall system depth |
Frame
|
2Track : 110mm
|
||||
|
Vent
|
42mm
|
|||||
|
Center Interlocking view
|
|
16mm
|
||||
|
Center Interlocking Depth
|
|
83mm
|
||||
|
Maximum Vent Height
|
|
3100mm
|
||||
|
Maximum Vent Weight
|
|
250kg
|
||||
|
Glass Thickness
|
|
6-24mm
|
||||
MS18
MS18
Premium System Windows & Doors

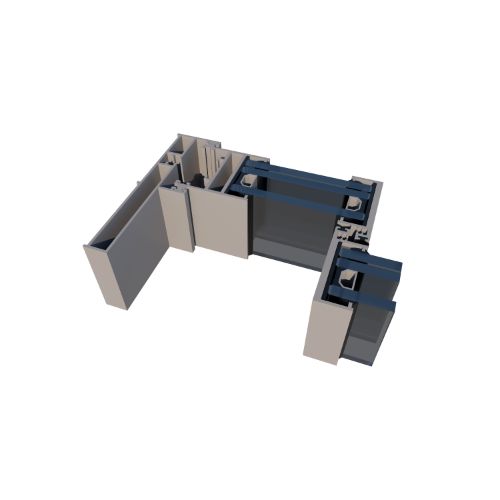

MAGS PREMIUM SLIM SLIDING SYSTEM MS18
Enjoy view with ultimate performances! The ultra-slim
design of the MS18 sliding door creates large transparent surfaces,
with a light, sleek and elegant appearance.
This fully transparent and accessible sliding door seamlessly extends
the house’s interior to the outside. Despite the minimal visual sidelines,
the systems high strength allows MS18 to carry the weight of a large
sliding glass pane up to 300 kilograms. Fixed panels up to 600 kg.
This in combination with the high energy performance and the
minimalistic look makes this product the best solution architecture.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
31mm
|
||||
|
Visible width / height
|
Vent
|
35mm |
||||
|
Meeting Setion |
42mm
|
|||||
|
Overall system depth |
Frame
|
2Track : 110mm , 3Track : 165mm
|
||||
|
Vent
|
42mm
|
|||||
|
Center Interlocking view
|
|
18mm
|
||||
|
Center Interlocking Depth
|
|
100mm
|
||||
|
Maximum Vent Height
|
|
3600mm
|
||||
|
Maximum Vent Weight
|
|
300kg
|
||||
|
Glass Thickness
|
|
12mm-32mm
|
||||

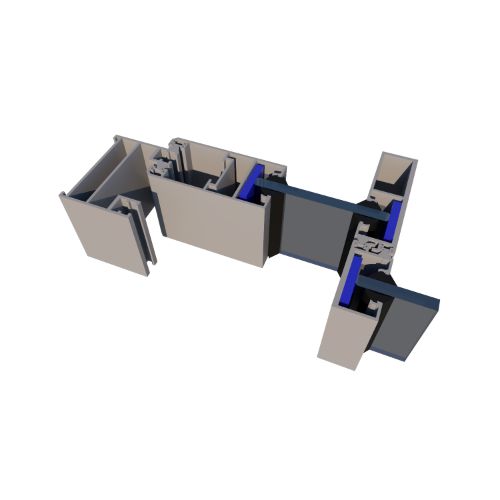

MS20
MS20
SLIDING WINDOWS
MAGS Sliding SLIM MS20 is a non-insulated sliding system offering a
wide range of solutions ideal for applications in warm climates,
winter gardens or the partitioning of indoor office spaces.
MS20 applies the latest techniques, designed according to
the highest European quality standards. This sliding system offers
the complete range of opening possibilities, from sliding
elements in the wall, over 2-, 3- to even 4-rail solutions.
With the minimalistic design, MS20 realises an aesthetic
solution for your building. In addition, the sliding elements can
easily be integrated with different types of windows,
conservatory systems, sun screenings and screen doors.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
41mm
|
||||
|
Visible width / height
|
Vent
|
68mm |
||||
|
Meeting Setion |
140mm
|
|||||
|
Overall system depth |
Frame
|
2Track : 55mm , 3Track : 95mm
|
||||
|
Vent
|
34mm
|
|||||
|
Center Interlocking view
|
|
20mm
|
||||
|
Center Interlocking Depth
|
|
R.interlock : 75mm , Interlock : 38mm
|
||||
|
Maximum Vent Height
|
|
3000mm , 2400mm
|
||||
|
Maximum Vent Weight
|
|
180kg
|
||||
|
Glass Thickness
|
|
6-24mm
|
||||

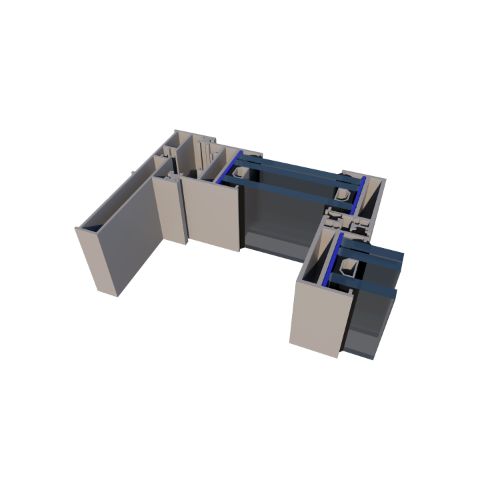

MS25
MS25
Premium System Windows & Doors
MAGS PREMIUM SLIM SLIDING SYSTEM MS25
Enjoy view with ultimate performances! The slim
design of the sliding door creates large transparent surfaces,
with a light, sleek and elegant appearance.
This fully transparent and accessible sliding door seamlessly extends
the house’s interior to the outside. Despite the minimal visual sidelines,
the systems high strength allows MS25 to carry the weight of a large
sliding glass pane up to 300 kilograms. Fixed panels up to 600 kg.
This in combination with the high energy performance and the
minimalistic look makes this product the best solution architecture.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
31mm
|
||||
|
Visible width / height
|
Vent
|
35mm |
||||
|
Meeting Setion |
42mm
|
|||||
|
Overall system depth |
Frame
|
2Track : 110mm , 3Track ; 165mm
|
||||
|
Vent
|
42mm
|
|||||
|
Center Interlocking view
|
|
25mm
|
||||
|
Center Interlocking Depth
|
|
100mm
|
||||
|
Maximum Vent Height
|
|
3600mm
|
||||
|
Maximum Vent Weight
|
|
300 kg
|
||||
|
Glass Thickness
|
|
12mm-32mm
|
||||
Hardware : Gisses, Lavaal, Sobinco, Kelegent and equv make use

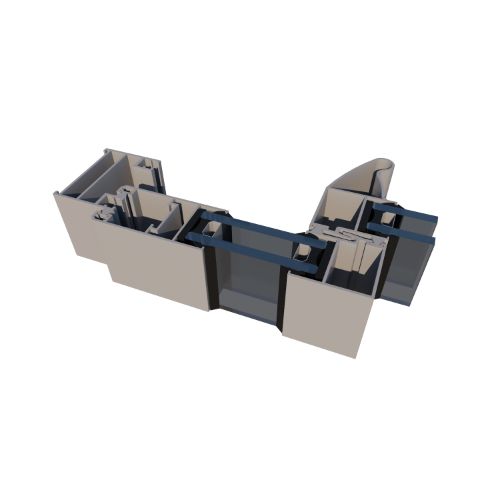

MS40
MS40
Premium System Windows & Doors
MAGS Sliding MS40 is a non-insulated sliding system offering a
wide range of solutions ideal for applications in warm climates,
winter gardens or the partitioning of indoor office spaces.
MS40 applies the latest techniques, designed according to
the highest European quality standards. This sliding system offers
the complete range of opening possibilities, from sliding
elements in the wall, over 2-, 3- to even 4-rail solutions.
With the minimalistic design, MS40 realises an aesthetic
solution for your building. In addition, the sliding elements can
easily be integrated with different types of windows,
conservatory systems, sun screenings and screen doors.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
41mm
|
||||
|
Visible width / height
|
Vent
|
68mm |
||||
|
Meeting Setion |
140mm
|
|||||
|
Visible width / height
|
Frame
|
2Track : 55mm , 3Track : 95mm
|
||||
|
Vent
|
34mm
|
|||||
|
Center Interlocking view
|
|
40mm
|
||||
|
Center Interlocking Depth
|
|
R.interlock : 85mm , Interlock : 38mm
|
||||
|
Maximum Vent Height
|
|
3000mm , 2400mm
|
||||
|
Maximum Vent Weight
|
|
180 kg
|
||||
|
Glass Thickness
|
|
6-24mm
|
||||

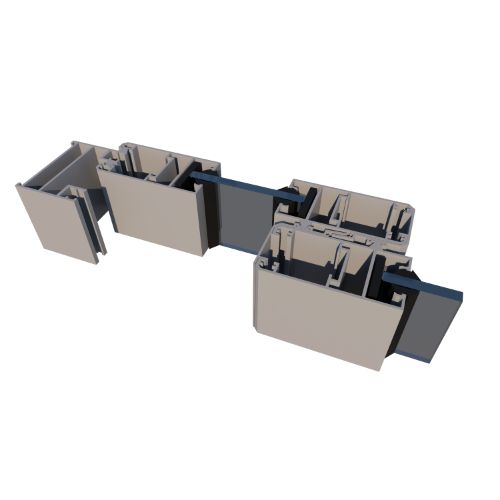

MS65
MS65
Premium System Windows & Doors
MAGS Sliding MS65 is a non-insulated sliding system offering a
wide range of solutions ideal for applications in warm climates,
winter gardens or the partitioning of indoor office spaces.
MS65 applies the latest techniques, designed according to
the highest European quality standards. This sliding system offers
the complete range of opening possibilities, from sliding
elements in the wall, over 2-, 3- to even 4-rail solutions.
With the minimalistic design, MS65 realises an aesthetic
solution for your building. In addition, the sliding elements can
easily be integrated with different types of windows,
conservatory systems, sun screenings and screen doors.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
41mm
|
||||
|
Visible width / height
|
Vent
|
68mm |
||||
|
Meeting Setion |
140mm
|
|||||
|
Visible width / height
|
Frame
|
2Track : 55mm , 3Track : 95mm
|
||||
|
Vent
|
34mm
|
|||||
|
Center Interlocking view
|
|
68mm
|
||||
|
Center Interlocking Depth
|
|
34mm
|
||||
|
Maximum Vent Height
|
|
2700mm
|
||||
|
Maximum Vent Weight
|
|
150 kg
|
||||
|
Glass Thickness
|
|
6-24mm
|
||||
|
Vent Mullion view
|
|
35mm
|
||||

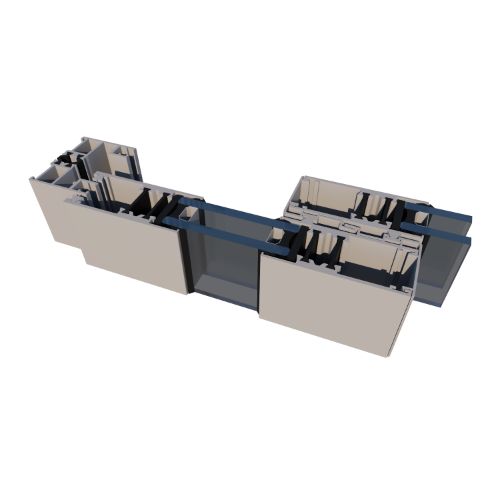

MSTH70
MSTH70
Premium System Windows & Doors
MAGS MSTH70 is a highly-insulated sliding system that
combines elegance with performance and security. This unique
sliding system is characterised profiles, allowing the
integration of large windows and doors for maximum views, in
combination with burglary resistance. The integrated
innovative technologies guarantee ultimate performances with
regard to wind and water tightness and thermal insulation, meeting
with the highest standards.
The sliding system MSTH70 offers you all design freedom to create
contemporary living spaces, combining ultimate brightness with
maximum comfort and security.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Height
|
Frame
|
41mm
|
||||
|
Visible width / height
|
Vent
|
75mm |
||||
|
Meeting Setion |
155mm
|
|||||
|
Visible width / height
|
Frame
|
2Track : 55mm , 3Track : 95mm
|
||||
|
Vent
|
35mm
|
|||||
|
Center Interlocking view
|
|
76mm
|
||||
|
Center Interlocking Depth
|
|
34mm
|
||||
|
Maximum Vent Height
|
|
3000mm
|
||||
|
Maximum Vent Weight
|
|
200 kg
|
||||
|
Glass Thickness
|
|
6-26mm
|
||||
DECISION MATRIX
| Design Variants | MS11 | MS16 | MS18 | MS20 | MS25 | MS40 | MS65 | MSTH70 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Functional |
|
|
|
|
|
|
|
|
||||
|
Slim Line |
|
|
|
|
|
|
|
|
||||
|
Monorail |
|
|
|
|
|
|
|
|
||||
|
Single Rail |
|
|
|
|
|
|
|
|
||||
|
2 Track |
|
|
|
|
|
|
|
|
||||
|
3 Track |
|
|
|
|
|
|
|
|
||||
|
Motorised |
|
|
|
|
|
|
|
|
||||
|
Auto Tower Bolt Locking |
|
|
|
|
|
|
|
|
||||
|
Low/Zero Threasold |
|
|
|
|
|
|
|
|
||||
|
Pocket |
|
|
|
|
|
|
|
|
||||
|
open Corner |
|
|
|
|
|
|
|
|
||||
|
Thermal Brack |
|
|
|
|
|
|
|
|
||||
|
SAFETY VARIANTS |
||||||||||||
|
Burglar Resistance |
|
|
|
|
|
|
|
|
||||
|
OVERALL SYSTEM DEPTH |
||||||||||||
|
FRAME |
45/75 |
110 |
110/167 |
55/95 |
110/167 |
55/95 |
55/95 |
50/90 |
||||
|
VENT |
25 |
35 |
45 |
34 |
45 |
34 |
34 |
35 |
||||
OPENING TYPES
| WINDOW And Door MATRIX | MasterLine 10 | MasterLine 8 | Sensity | CS 77 | CS 68 | ES 50 | SlimLine 68 | SlimLine 38 | CS 24-SL | CS 59Pa | ES 45Pa | SlimLine 38 | Door Matrix | MasterLine 10 | MasterLine 8 | Sensity | ES 45Pa | CS 24-SL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Casement
Windows & Doors
MCTH45
MC45
MC105

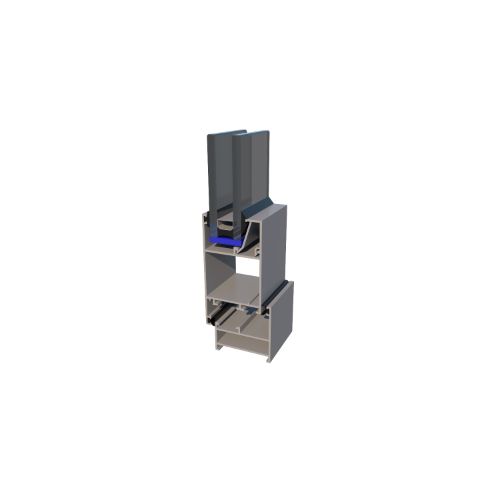

MD45
MCTH45
MCTH45
Premium System Windows & Doors

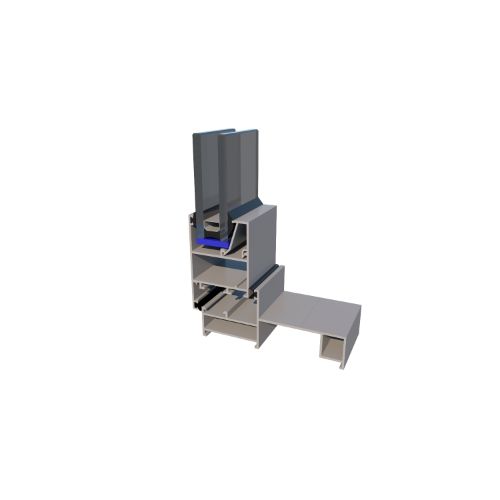

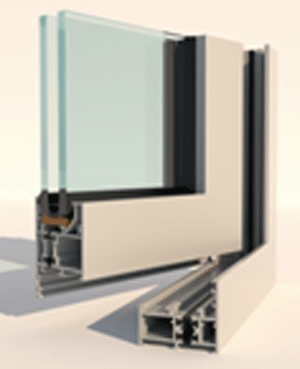

MAGS Casement Thermal breack MCTH45 system is a universal window and door system, with good
performances regarding stability, thermal insulation and security. The system is available in a variety of aesthetic styles: Functional.The system offers a range of solutions for inward and outward
opening windows or doors, and is compatible with the Ventalis
ventilation units. In addition,MCTH45 windows and doors can comply
with burglar resistance, offering an ultimate level of
security.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Min. visible width inward opening window
|
Frame
|
50mm
|
||||
|
Vent
|
40mm |
|||||
|
“Min. visible width inward opening
window-door” |
Frame
|
45mm
|
||||
|
Vent
|
67mm |
|||||
|
Overall system depth window
|
Frame
|
45mm
|
||||
|
Vent
|
52mm |
|||||
|
Rebate height
|
|
23mm
|
||||
|
Glass thickness
|
Frame
|
5mm to 24mm
|
||||
|
Vent
|
5mm to 24mm
|
|||||
MC45
MC45
Premium System Windows & Doors

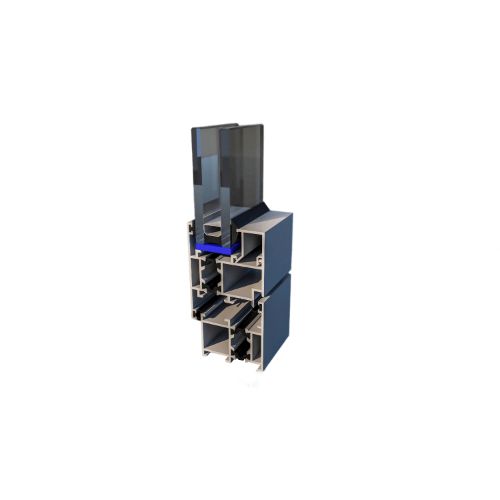

MAGS CASEMENT SYSTEM MC45 is a non-insulated system for inward and outward opening
windows and doors, designed according to the highest European
quality standards. To guarantee superior quality and performance
in every situation, the system has three gasket levels for inward and
outward opening windows and doors. Through intelligent
application, these multiple gaskets meet even the high air- and water
tightness requirements of tropical regions. This simple, yet highly
innovative design offers a very cost-efficient solution thanks to its
optimised fabrication process.
MC45 can be realised with all types of inward and outward
opening windows and doors, with an extensive choice of accessories
the perfect match of building concepts.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Min. visible width inward opening window
|
Frame
|
45mm
|
||||
|
Vent
|
43mm |
|||||
|
“Min. visible width inward opening
window-door” |
Frame
|
45mm
|
||||
|
Vent
|
70mm |
|||||
|
Overall system depth window
|
Frame
|
45mm
|
||||
|
Vent
|
45mm |
|||||
|
Rebate height
|
|
23mm
|
||||
|
Glass thickness
|
Frame
|
5mm to 24mm
|
||||
|
Vent
|
5mm to 24mm
|
|||||

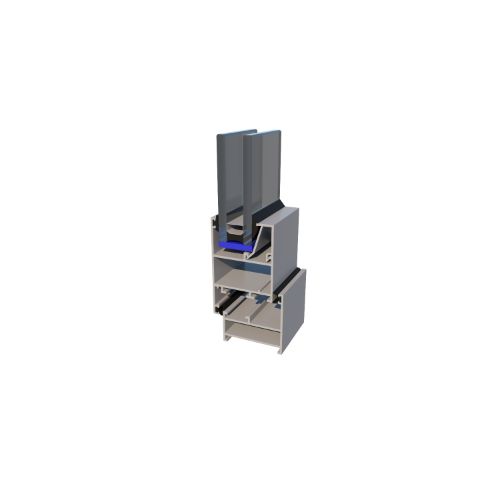

MC105
MC105
Premium System Windows & Doors
MAGS CASEMENT 3 in 1 SYSTEM MC105 is a non-insulated system for inward and outward opening
windows and doors, designed according to the highest European
quality standards. To guarantee superior quality and performance
in every situation, the system has three gasket levels for inward and
outward opening windows and doors. Through intelligent
application, these multiple gaskets meet even the high air- and water
tightness requirements of tropical regions. This simple, yet highly
innovative design offers a very cost-efficient solution thanks to its
optimised fabrication process.
MC105 can be realised with all types of inward and outward
opening windows and doors, with inside fix grill with Inside openable mosquito.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Min. visible width inward opening window
|
Frame
|
45mm
|
||||
|
Vent
|
45mm |
|||||
|
“Min. visible width inward opening
window-door” |
Frame
|
45mm
|
||||
|
Vent
|
70mm |
|||||
|
Overall system depth window
|
Frame
|
105mm
|
||||
|
Vent
|
45mm |
|||||
|
Rebate height
|
|
25mm
|
||||
|
Glass thickness
|
Frame
|
5mm to 24mm
|
||||
|
Vent
|
5mm to 24mm
|
|||||
MD45
MD45
Premium System Windows & Doors
MAGS CASEMNET DOOR
MD45 profiles and accessories for windows and doors and
extensively tested in an optimized European test and approval
program. The fireproofing time span is achieved by inducing a
special cooling material into the profile chambers and by using
self-adhesive and water-resistant swelling gaskets. These gaskets
do not need to be sealed, reducing fabrication time of the profiles
and saving costs.
The MD45 fire proof range is available as outward opening single
and double doors, panic doors, combined fixed window elements as
well as glazed partition walls. This extensive range of
configurations offers a huge range of options and combinations for
architects to work with. Furthermore a large choice of accessories
and locking devices is available.
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
Min. visible width inward opening window
|
Frame
|
45mm
|
||||
|
Vent
|
43mm |
|||||
|
“Min. visible width inward opening
window-door” |
Frame
|
45mm
|
||||
|
Vent
|
85mm |
|||||
|
Overall system depth window
|
Frame
|
45mm
|
||||
|
Vent
|
45mm |
|||||
|
Rebate height
|
|
23mm
|
||||
|
Glass thickness
|
Frame
|
5mm to 24mm
|
||||
|
Vent
|
5mm to 24mm
|
|||||

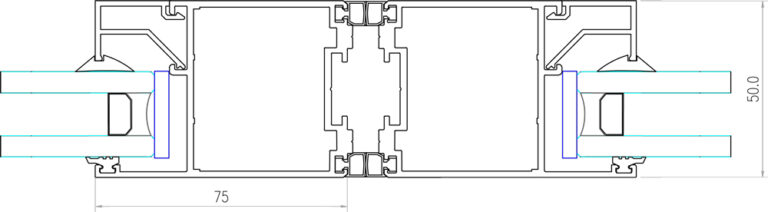

SLIDING FOLDING SYSTEM
MSFD50
Slidind Folding System
Invite nature into your building
MAGS Sading folding MSFOSO is high insulation and confort with macmal tramcarency and aetics, talowas for large and heavy glass span to really open up the space whilearing optimal imulation This is high performance system offers different opening types, not inward and outward to meet all possible requirements, apart from the standard folding element, t
can feature a main door principal, in which the first left is used as an entrance door without addoctiong the other MAGS Skring Folding MSFD50 is available 0 threshold solutions, from high performance to low and even fu threshoulds, in order to perfectly match all comfort an Additionally, the concept can be perfectly combed with the concept system for windows, doors
| TECHNICAL DETAILS | MSFD75 | MSFD45 | ||
|---|---|---|---|---|
|
Visible Frame |
0/19/31 mm |
0/19/31 mm |
||
|
Visible Vent Width |
75 mm |
45 mm |
||
|
System Depth |
50 mm |
50 mm |
||
|
Max Vent Size |
1200 x 3000 mm |
1200 x 3000 mm |
||
|
Max Vent Weight |
120kg |
120kg |
||
|
Rebate Height |
31 mm |
31 mm |
||
|
Max Glass Thickness |
6 mm - 30 mm |
6 mm - 30 mm |
||
MSFD70
MSFD45

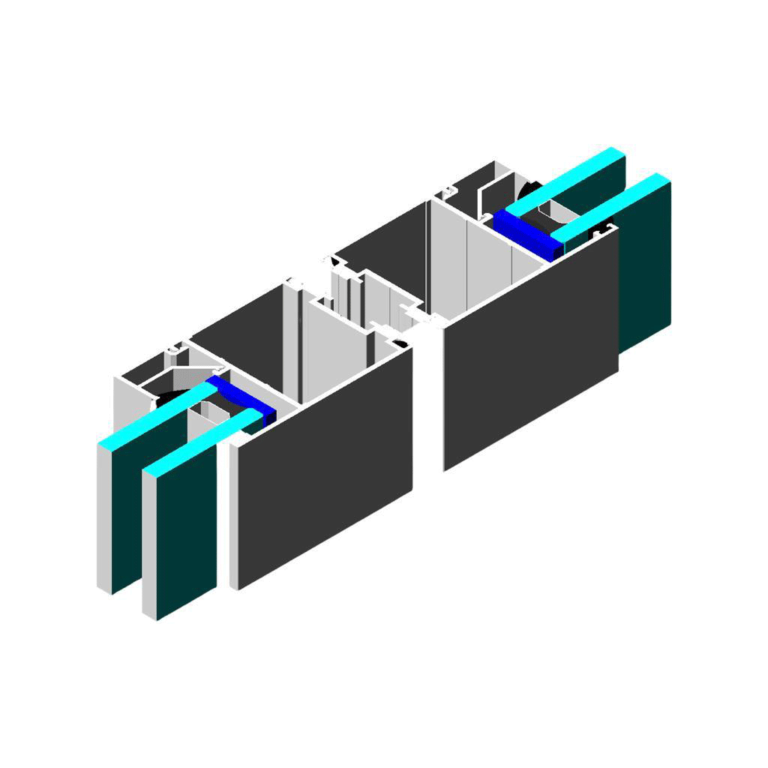

MSFD75

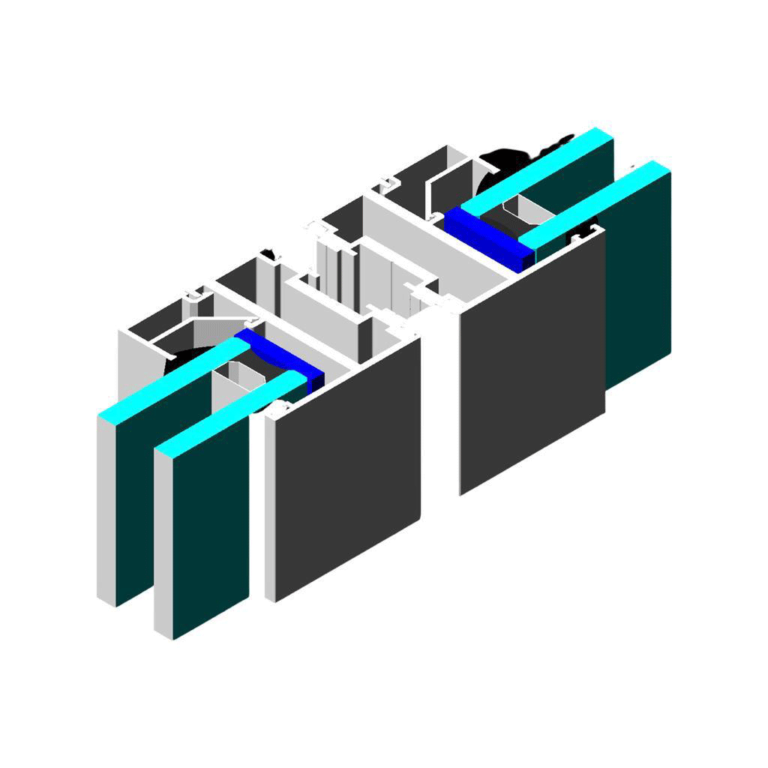

Slim Sliding Folding
Invite nature into your building
MSFD45
Slim Sliding Folding
Invite nature into your building
Glazing System
MCW50
MAGS creative freedom and maximum entrance of light
Concept Wall 50 is a façade and roof system that offers unlimited design freedom and allows maximum transparency. Innovative solutions contribute towards the tendency of big, heavy and high insulated glass panes. MCW 50 supports glas panes up to 700 Kg in various glass configurations. Even more glass weight can be offered in bespoke solutions.
The system is available in several design and glazing variants, but also includes different technical variants to comply with specified levels of fire-resistance and thermal insulation down to Uf = 0.56W/ m²K.
The design variants offer solutions for both the exterior and the interior of the building. The glazing variants range from using standard pressure plates, to structurally glazed and structurally clamped solutions.
| PERFORMANCE | ||
|---|---|---|
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
Thermal insulation
Acoustic Performance
Air Tightness
Wind Load resistance
Water Tightness
Burglar resistance| TECHNICAL DETAILS | ||||
|---|---|---|---|---|
|
|
 |
 |
||
|
TECHNICAL
CHARACTERISTICS |
MCW 50 |

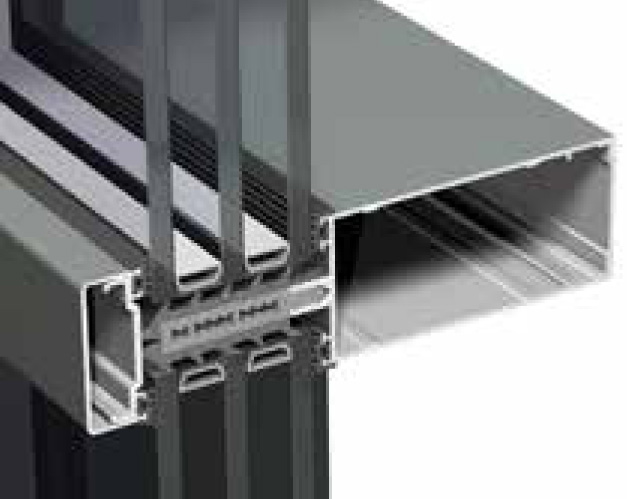

MCW 38 |
||
|
Inside visible width |
50 mm |
38 mm |
||
|
Outside visible width |
50 mm |
38 mm |
||
|
Glass thickness |
from 6 to 61 mm |
from 6 to 24 mm |
||
| TECHNICAL DETAILS | |||
|---|---|---|---|
|
|
 |
||
|
TECHNICAL
CHARACTERISTICS |
MSG 50 |
||
|
Inside visible width |
50 mm |
||
|
Outside visible width |
Joint: 20 mm |
||
|
Glass thickness |
from 27 to 63 mm |
||

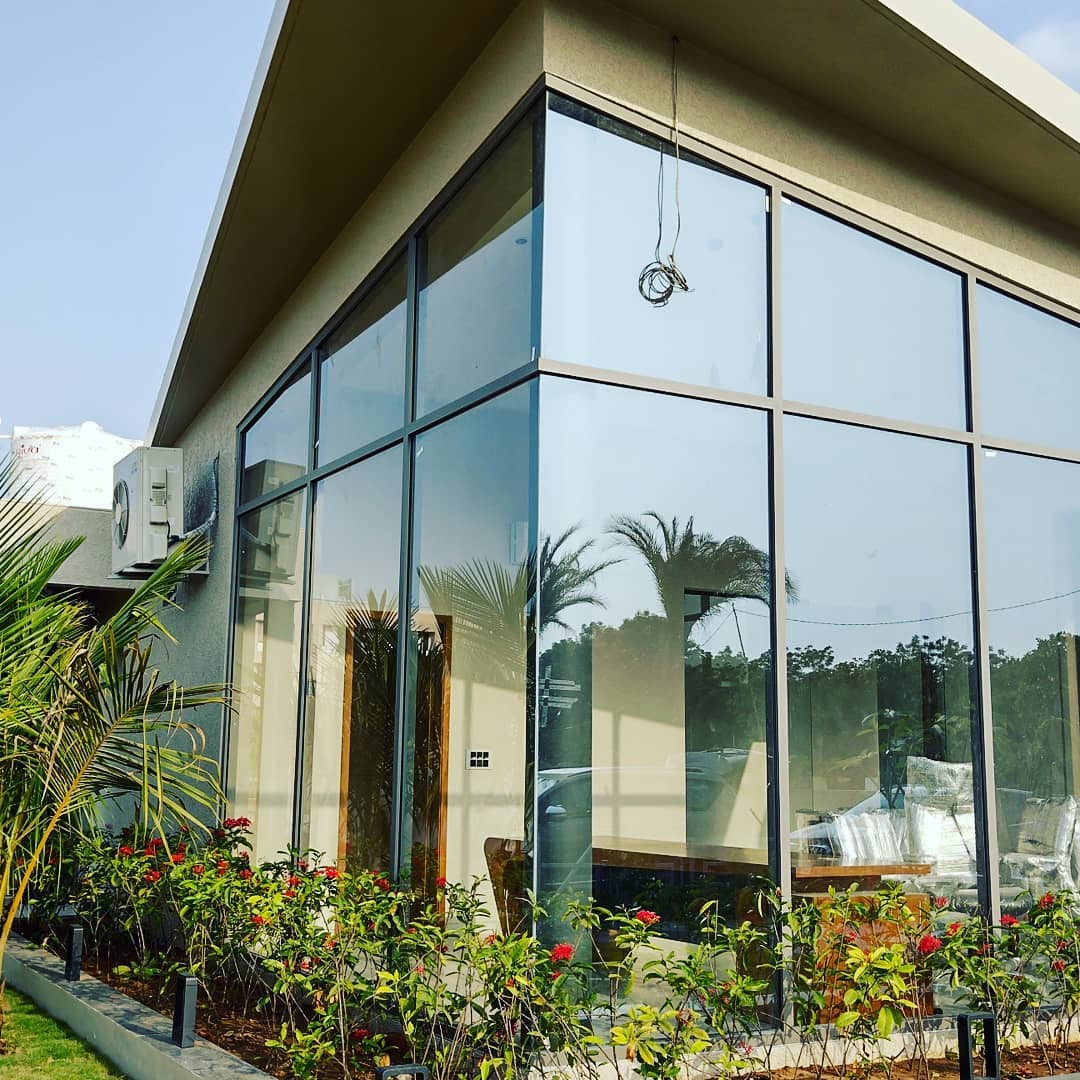

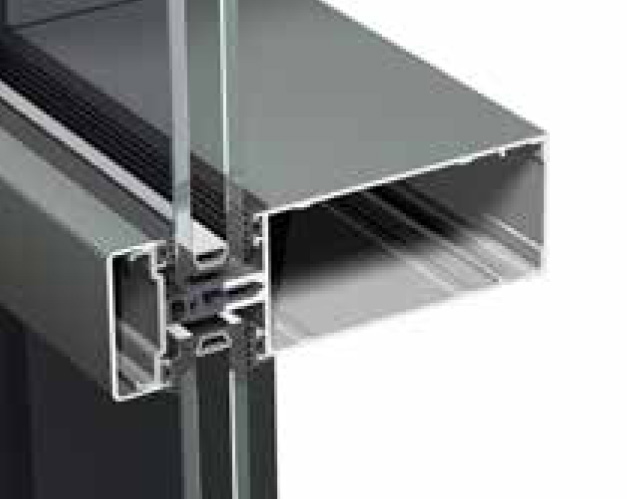

MCW50
Curtain wall
Invite nature into your building

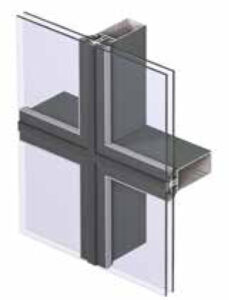

MCG50
Curtain wall
Invite nature into your building
RAILING

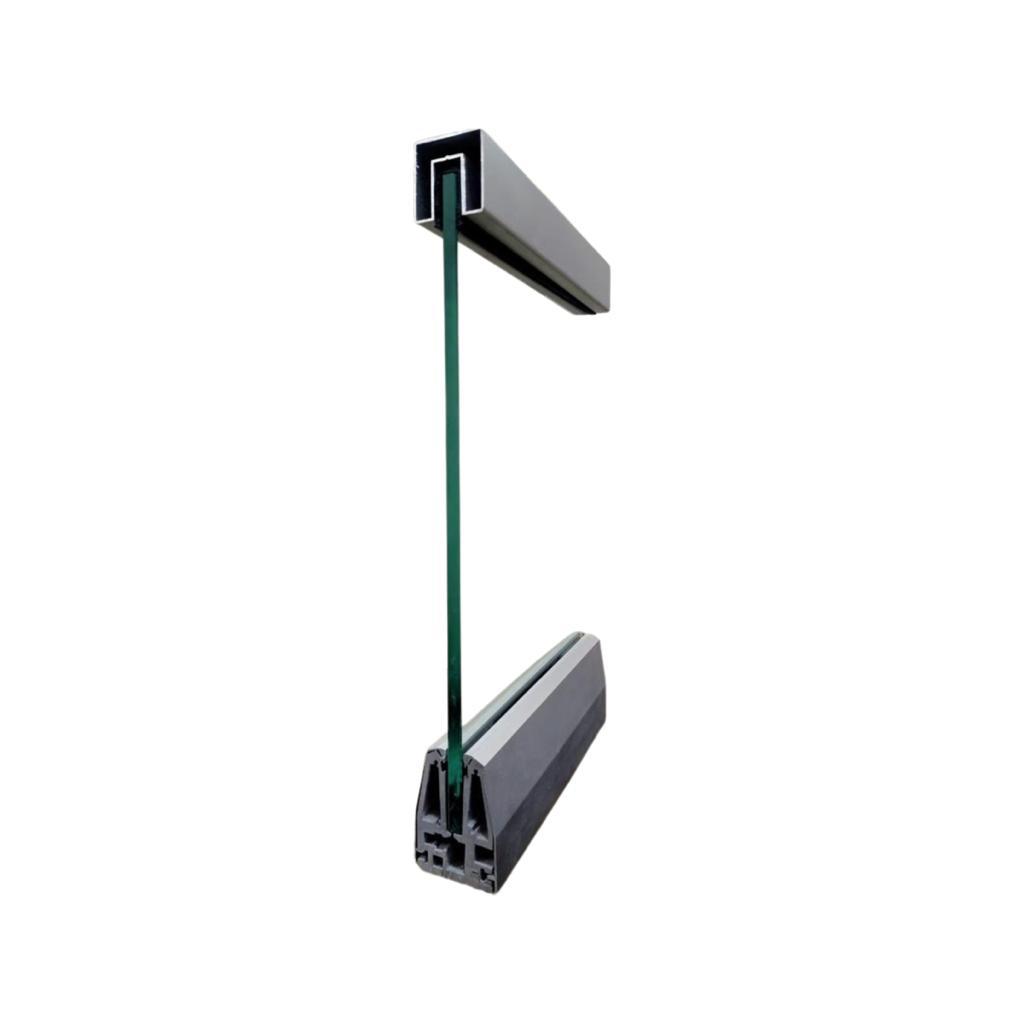

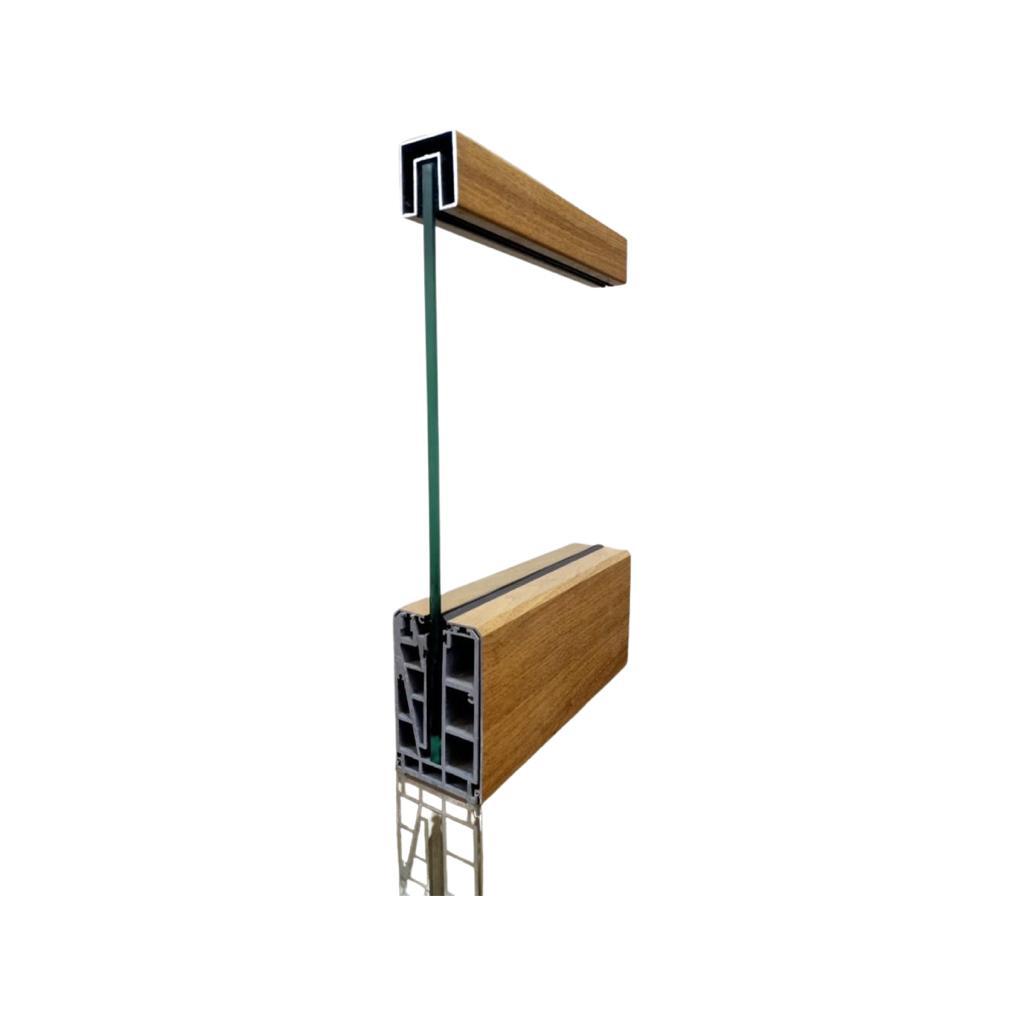

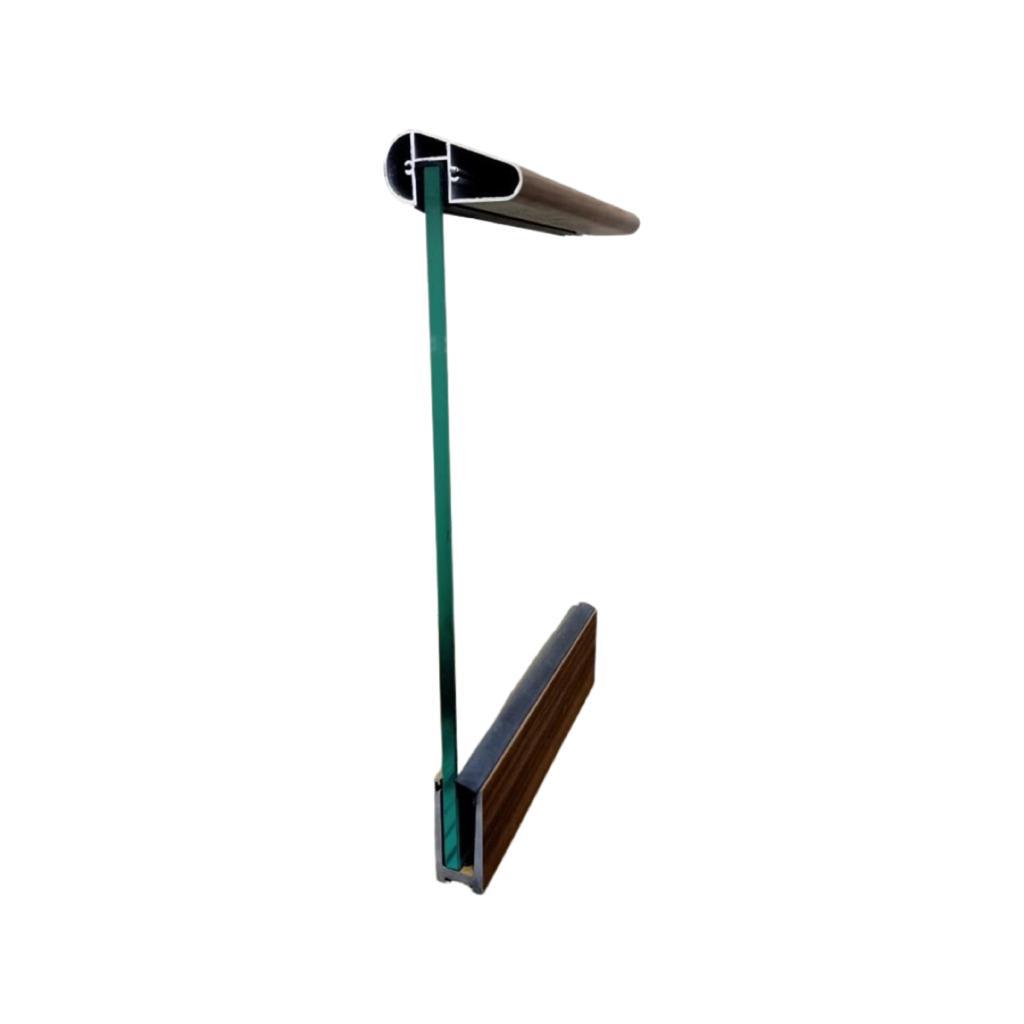

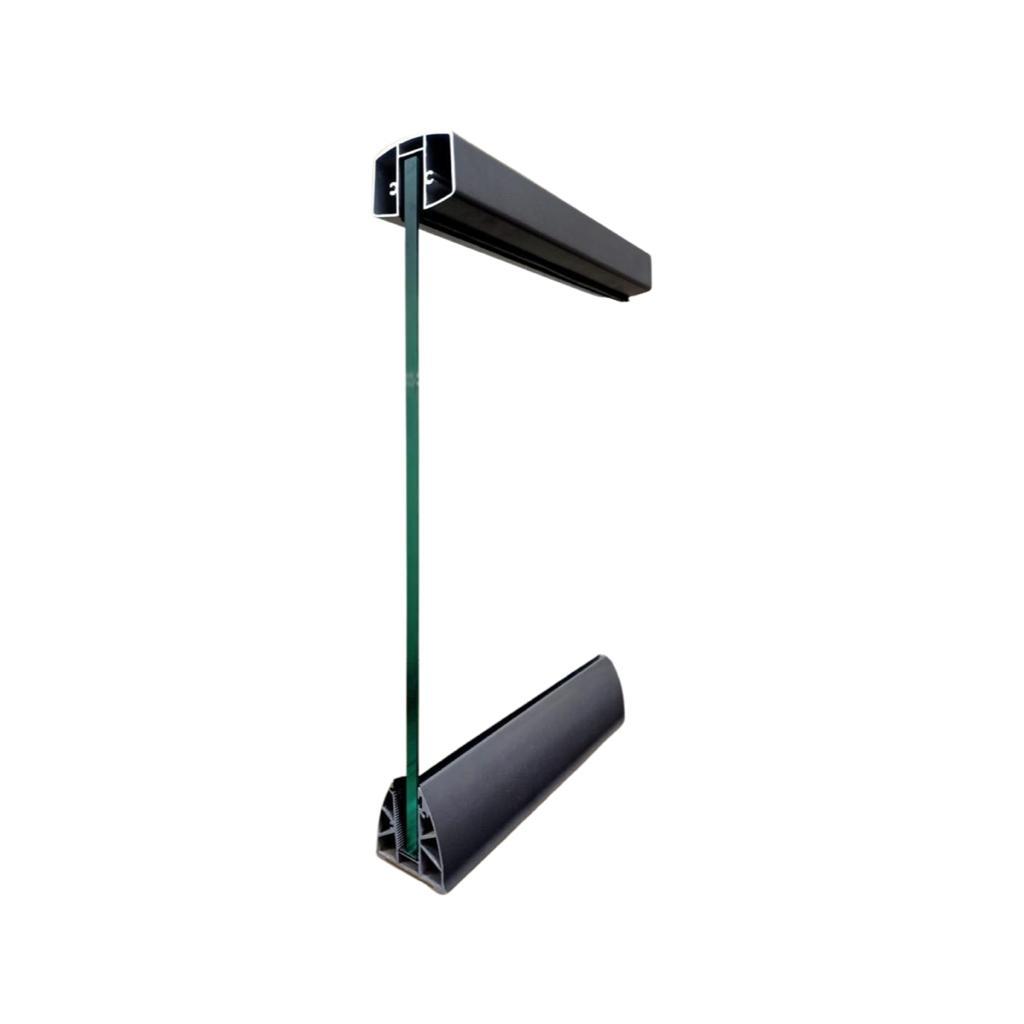

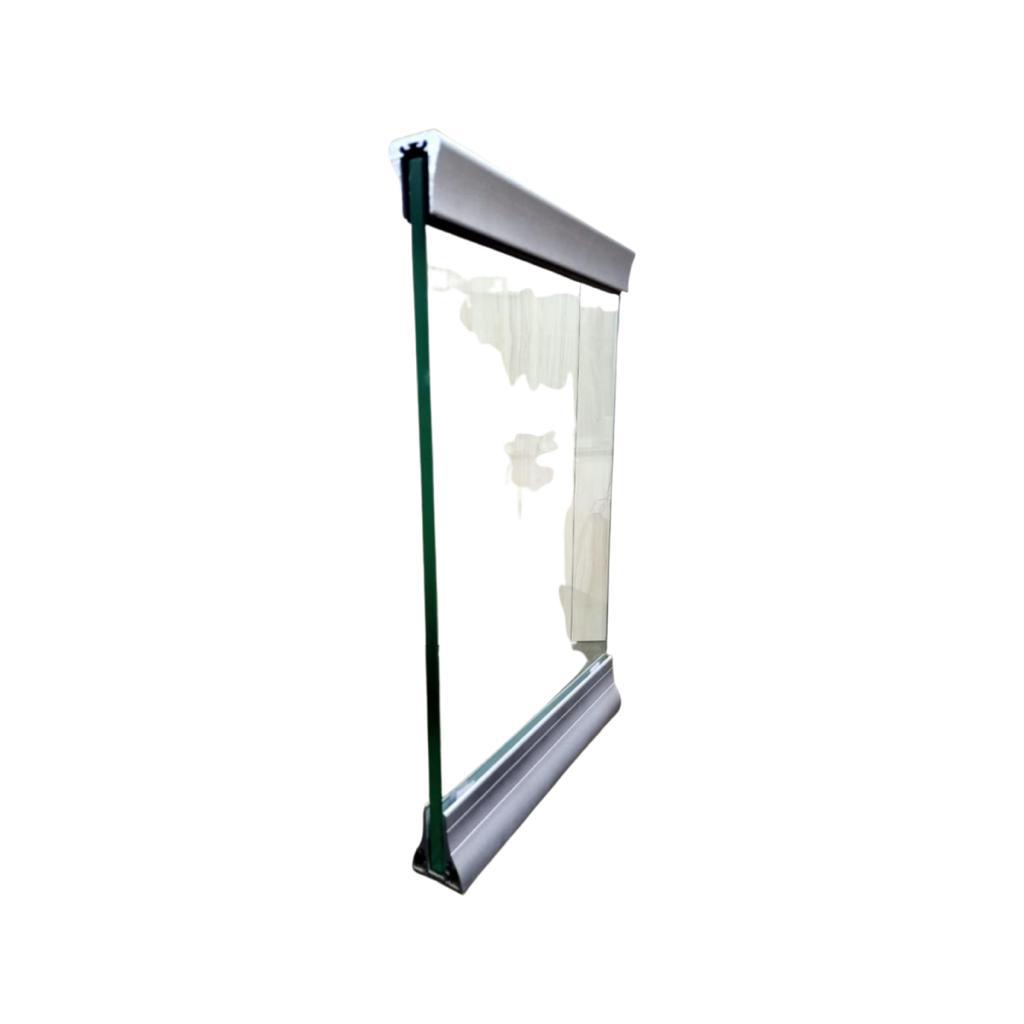

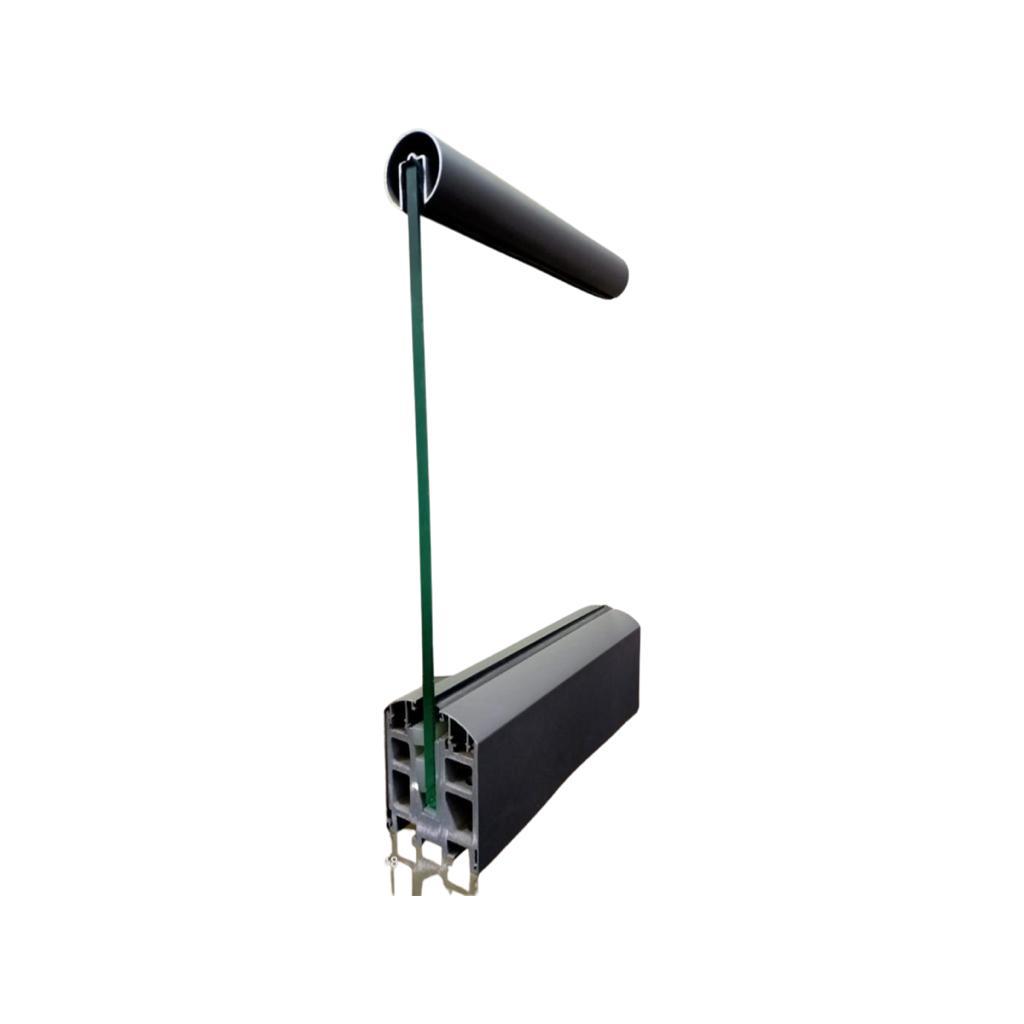

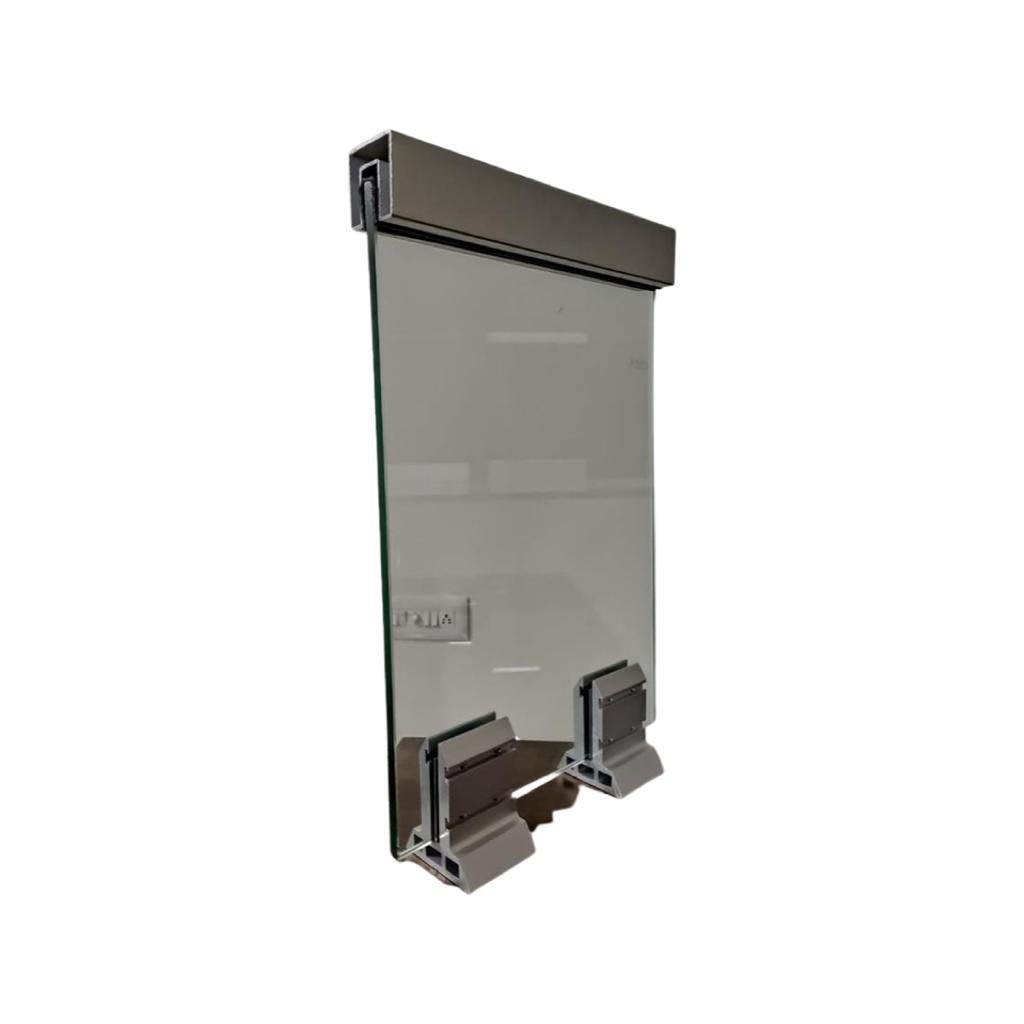

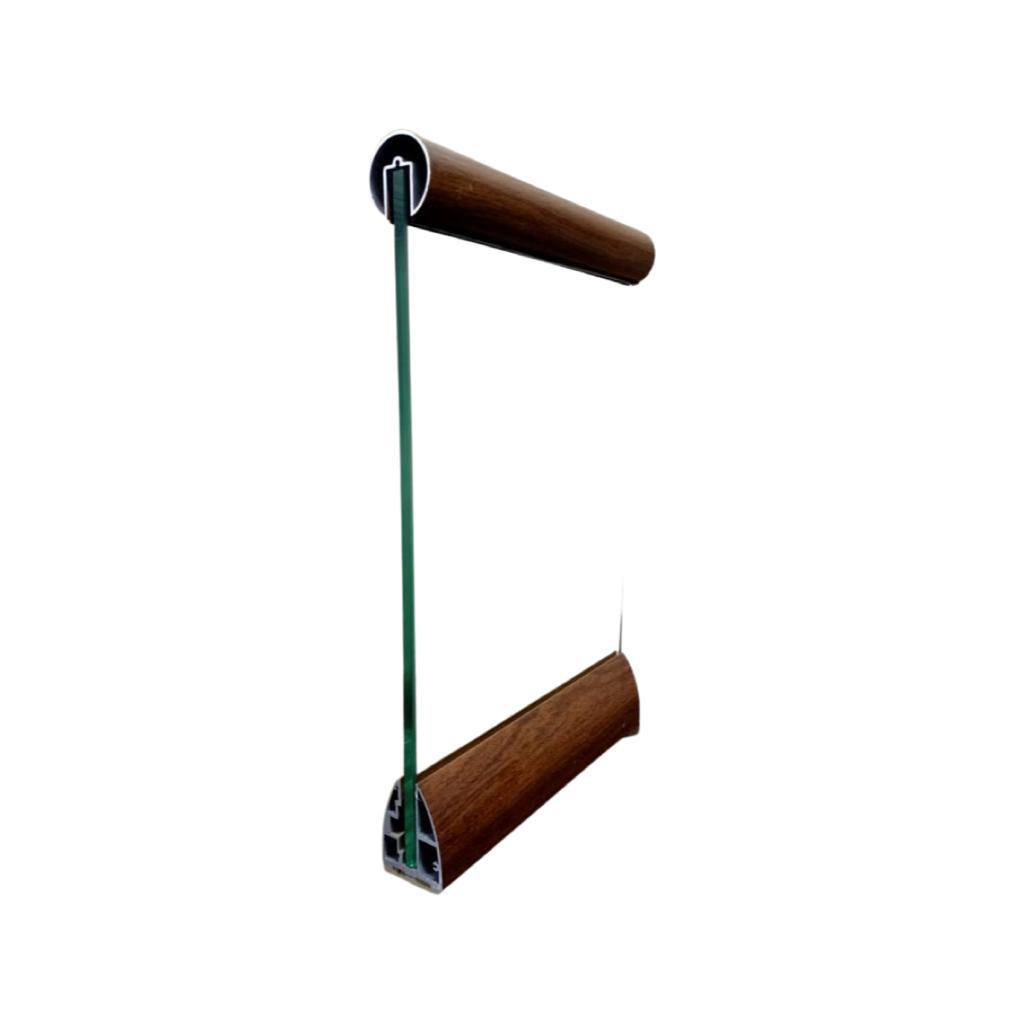

Aluminum Glass Railing
S S Glass Railing
Invisible Grill
Product
Product

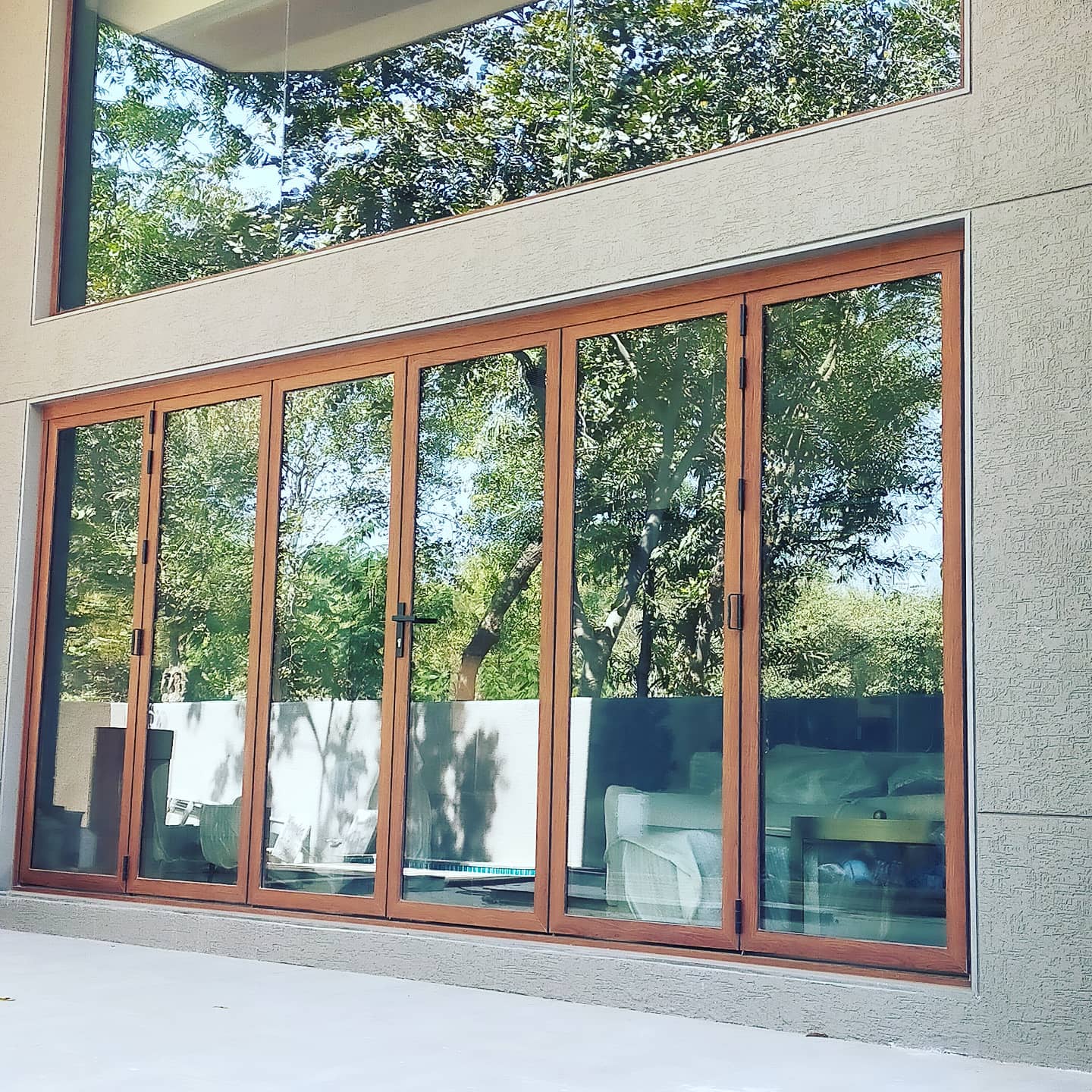

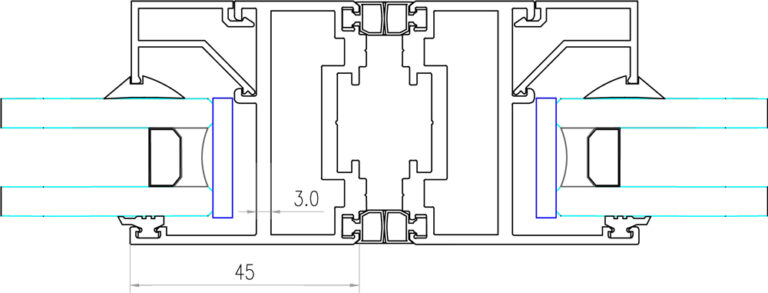

MSFD-50
Folding System
Invite nature into your building
| TECHNICAL CHARACTERISTICS | ||||||
|---|---|---|---|---|---|---|
|
|
CF 77 |
CF 77-SL |
||||
|
Max. vent size |
1200 x 3000 mm |
1200 x 3000 mm |
||||
|
Max. vent weight |
120 kg |
120 kg |
||||
|
Uw (W/m²K) 4-panel: 4000 x 2700 mm |
down to 1.66 |
down to 1.66 |
||||
|
Visible width vent-vent section |
144 mm |
122 mm |
||||
| PERFORMANCES | ||||||
|---|---|---|---|---|---|---|
|
Thermal insulation |
Uf-value down to 2.25 W/m²K |
|||||
|
Air Tightness |
Up to 600 Pa (class 4) |
|||||
|
Wind load resistance |
Up to 1200 Pa (class 3) |
|||||
|
Water Tightness |
Up to 1200 Pa (class 3) |
|||||
|
Burglar resistance |
Up to 1200 Pa (class 3) |
|||||
WINDOW HANDLES
Mags Aluminium is a part of the group Mags. This international group has experienced massive growth in the last 30 years. Having grown more than 200% over the last 10 years, Mags Aluminium is considered by all players in the industry as one of the leaders in its business. In 2018 Mags achieved a turnover of 537 million euros and has over 2200 employees throughout the world.
|
TECHNICAL CHARACTERISTICS |
Handles | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Window |
 Design |
 Comfort |
||||||||||||||||||
|
Door |
Design |
Comfort |
||||||||||||||||||
|
Sliding door |
Design |
Comfort |
||||||||||||||||||
|
Lift and slide |
Design |
Comfort |
||||||||||||||||||
|
Offset |
 Door |
Window |
||||||||||||||||||
|
Reduced |
Cylinder Cover |
Safety |
||||||||||||||||||
SURFACE TREATMENT
Colors & finishing
A well-known name in the field of Powder Coating & Wood Finish. it is Process with international quality architectural coatings in India, Now we know with our new biggest unit for ” MAGS”
We are the authorized applicators in India for EUROPEAN EXPERTS, JOTUN and AKZONOBEL Powders for Super durable powder coatings like PE-F, PE-SDF, Interpon D 1000/2000/3000. Architectural building material such as a Structural Glazing, Aluminium Panels, Curtain walls, Aluminium Windows and Partition, Building elevation. ect use for Powder Coating
MAGS has a conveyorised plant with large series of powder coating with choice of various RAL Series, Metallic shade, sparkle finish, Texture finish and bonded Metalic etc. All our shade product reliability makes us a pioneer in giving coating performance.
Better guaranteed Wood Finish with 10 to 15 Years Warranty in various product of wood lamination film coating by MENPHIS Film from USA. WE use a “HENKEL” – pre – tertment which is the best quality chemicals by Henkel Technical process from GERMANY with neno technology treatment. Warranty for Powder Coating which starts from 10 to 30 Years for “Product Warranty” from the groups we are associate with. Premium coatings, best service and reliable product with us for the customers

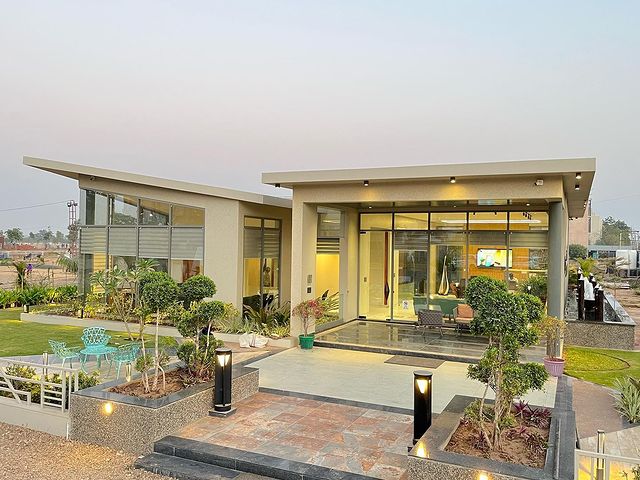

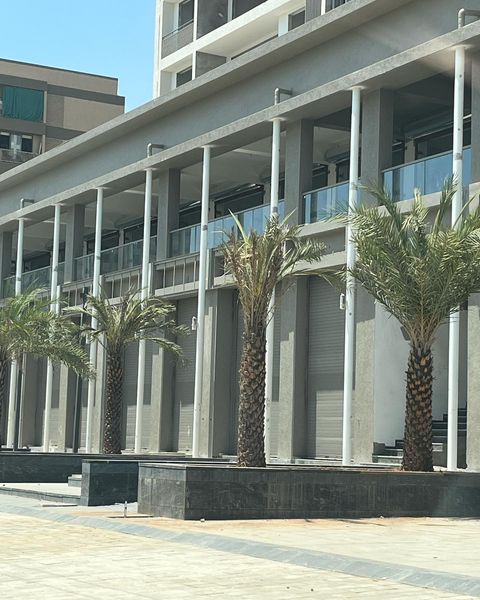

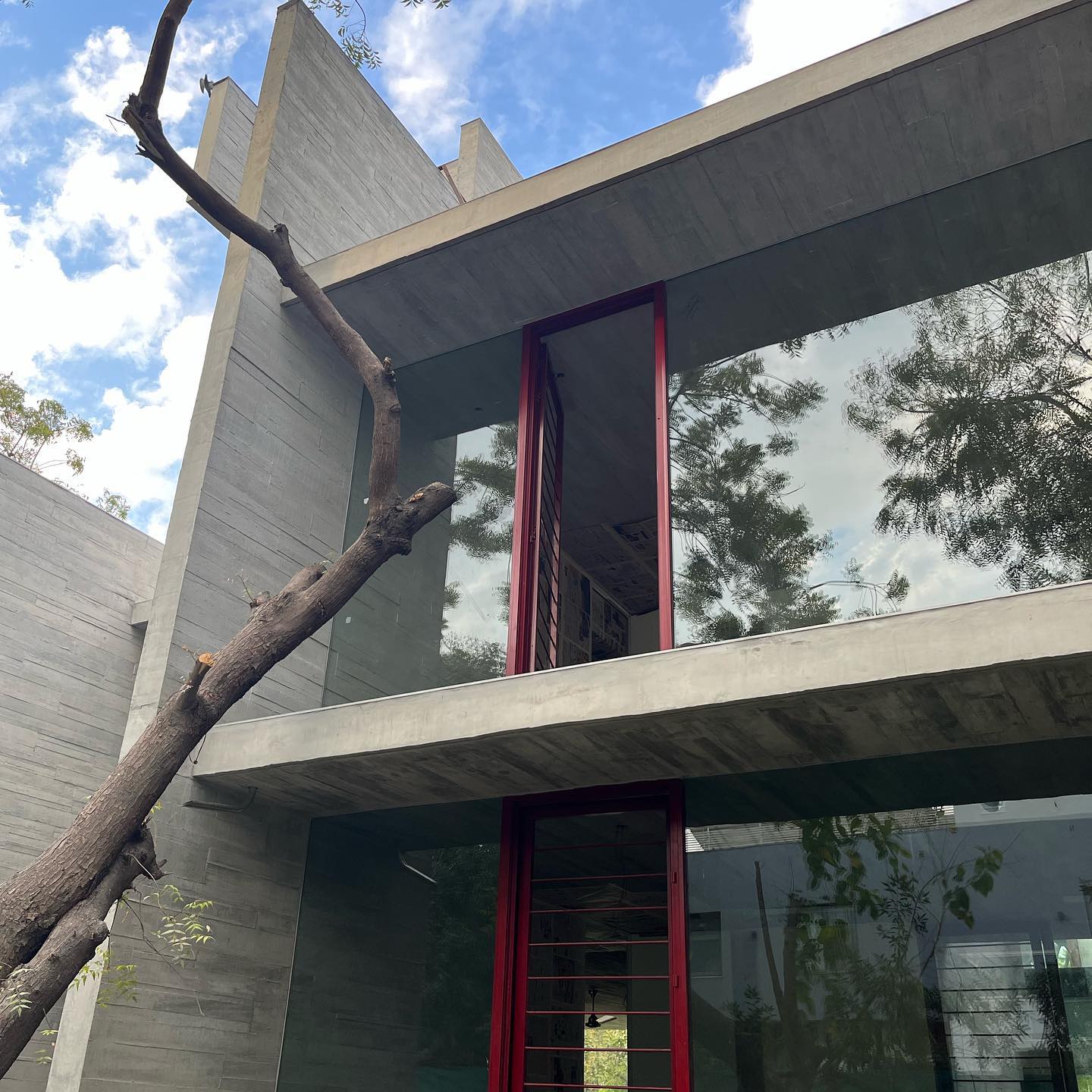

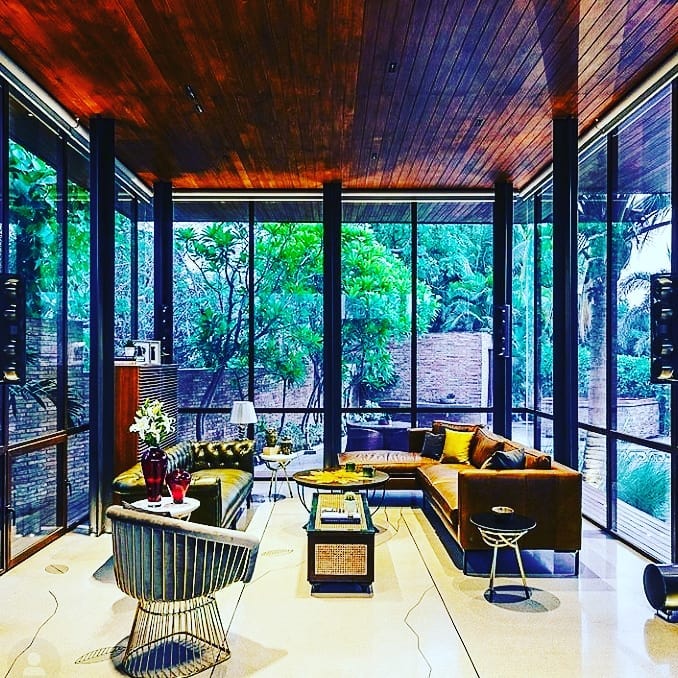

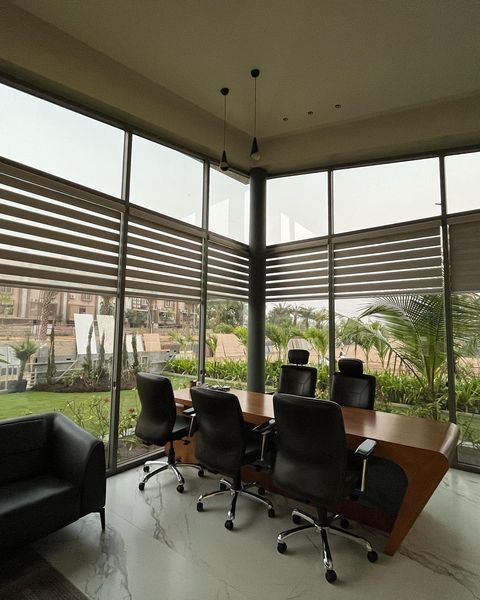

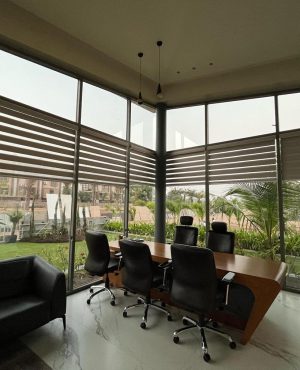

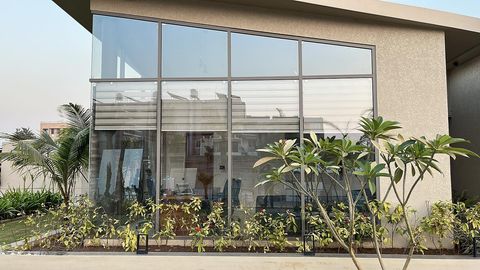

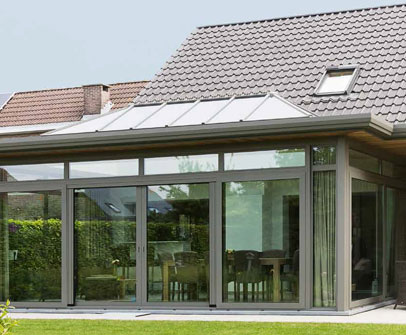

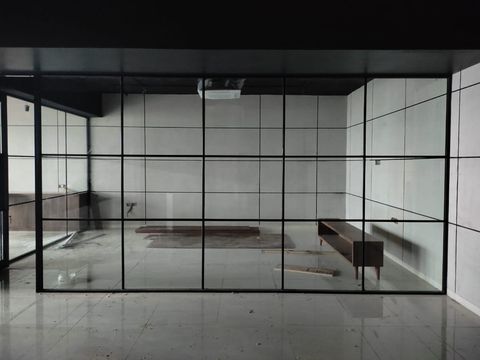

Gallery
COMMUNICATION
Mags Aluminium is a part of the group Mags. This international group has experienced massive growth in the last 30 years. Having grown more than 200% over the last 10 years. achieved a turnover of 537 million euros and has over 2200 employees throughout the world.
A large range of tools and services is at our customers’ disposal:
- Commercial trainings
- Point of Sales material
- Product brochures
- Corporate brochures
- Reference book
- Commercial trainings
QUALITY MANAGEMENT
Mags Aluminium is a part of the group Mags. This international group has experienced massive growth in the last 30 years. Having grown more than 200% over the last 10 years. achieved a turnover of 537 million euros and has over 2200 employees throughout the world.
MAAHI Alu Glaze System provides certainty: 10-year system guarantee
At each stage of the production process our quality control department carries out very stringent checks, which enable us to guarantee that our systems satisfy country- and product specific technical approvals and standards. In addition we grant a 10-year system guarantee. This is an insurance on the aluminium, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee.
ISO 9001:2008 certification: proves permanent quality control
At the Mags Campus, you can visit the Experience Centre that is designed to bring people together and inspire you with our latest solutions and state-of-the-art technologies for architectural building solutions. In the Experience Room, you can discover our unique offering, assisted by inspiring digital applications. For a full immersive experience, a visit to AVALON can be booked where you can visit future buildings through a shared virtual reality experience.
Qualicoat guarantees top-quality lacquer work
At the Mags Campus, you can visit the Experience Centre that is designed to bring people together and inspire you with our latest solutions and state-of-the-art technologies for architectural building solutions. In the Experience Room, you can discover our unique offering, assisted by inspiring digital applications. For a full immersive experience, a visit to AVALON can be booked where you can visit future buildings through a shared virtual reality experience.
Qualanod guarantees optimal anodisation
At each stage of the production process our quality control department carries out very stringent checks, which enable us to guarantee that our systems satisfy country- and product specific technical approvals and standards. In addition we grant a 10-year system guarantee. This is an insurance on the aluminium, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee.
GREEN COMMITMENT
MAAHI Alu Glaze System is aware that companies play an important role in the care for the environment. That is
the reason why we are constantly searching for new ways to become “greener and are at the forefront in the
development of energy saving and sustainable products.
In short, the Cradle to Cradle certificate guarantees that:
- our systems are made with due respect for raw materials, energy and water usage
- no harmful materials are used
- these systems can be recycled easily.
For architects and builders, it pays to build with C2C, Passive House or Minergie certified systems. The principles of these certificates are closely aligned with BREEAM (BRE Environmental Assessment Method) and LEED (Leadership in Energy and Environmental Design), the internationally recognized labels that determine the sustainability levels of buildings. These certifications show that the buildings are built taking into account environmental issues such as: energy demands of the building, recycling of materials, use of water, comfort of people inside the building, use of renewable energy sources, location of the building,…
The increasing interest in these certificates proves the importance of sustainable. With innovative products, continuing research and focus on knowledge exchange MAAHI Alu Glaze System makes a genuine contribution to this way of building. However, our focus is not only on making our products greener, but also to make ourselves as a company as sustainable as possible. Around the Reynaers Campus, a large green zone ensures optimal and sustainable water management. In addition, the company has been focusing for years on alternative and creative transport solutions for commuter traffic: from (electric) bicycles and carpooling to company cars with low CO2 emissions. With this policy, MAAHI Alu Glaze System saw its CO2 footprint falling sharply over a short period. The company was also amongst the first to firmly opt for the large-scale use of solar panels.
PERFORMANCE MATRIX
| MasterLine 10 | MasterLine 8 | Sensity | CS 77 | CS 77-FP/SP | CS 77-BP | CS 68 | ES 50 | SL 68 | SL 38 | CS 24-SL | CS 59Pa | ES 45Pa | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SAFETY VARIANTS |
|||||||||||||||||||||||
|
Burglary Proof |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
Fire Proof |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
Bullet Proof |
|
|
|
|
|
|
|
|
|||||||||||||||
|
Smoke leakage control |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
SUSTAINABILITY |
|||||||||||||||||||||||
|
High Insulation |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
Passive Housing Certificate |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
Ventalis |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
MINIMAL VISIBLE WIDTH FRAME/VENT |
|||||||||||||||||||||||
|
|
104mm |
104mm |
10mm |
15mm |
183mm |
15mm |
20mm |
25mm |
90mm |
60mm |
74mm |
92mm |
65mm |
71mm |
63mm |
96mm |
98mm |
47mm |
22mm |
06mm |
20mm |
25mm |
94mm |
|
PERFORMANCES |
|||||||||||||||||||||||
|
Insulation smallest frame |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
0.9
W/m²K |
|
Air tightness Class |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
4
(600 Pa) |
ABOUT MAGS
MAGS is a leading European specialist in the development and marketing of innovative and sustainable aluminium solutions for windows, doors, curtain walling, sliding systems, sunscreening and conservatories. Besides offering an extensive range of standard solutions, the company also develops solutions that are tailored to the individual customer or project.
Research, product development and testing are conducted at the Reynaers Campus, the sector’s largest private innovation and testing centre, located in Duffel (Belgium). In addition, the company also provides extensive technical support and advice to fabricators, contractors and architects.
MAGS is the market leader in Belgium and has acquired a strong market position in the 40 countries where it has its own sites. The company’s success is due in part to the close partnership between Reynaers Aluminium and 5,000 partner fabricators, architects and project developers worldwide.
Mags is founded in 1965 and is part of the group Reynaers, currently employing over 2200 workers in more than 40 countries worldwide and exporting to more than 70 countries on 5 continents. The company achieved an annual turnover of 537 million euros in 2018.
building on ideas to make better ideas
We are manufacturing and Taking turnkey Projects of all kind Aluminium Facade work includes
Windows
- Aluminium System Windows
- Sliding Windows
- Lift & Slide Windows
- Tilt & Slide Windows
- All other type of sliding windows
- Casement Windows
- Tilt & Turn Windows
- Top Hung Windows
- Side Hung windows
(All the windows are available with Single/ DGU/Laminated Glass with Multi Point Locking System)
Doors
- Aluminium System Doors
- Single & Double Door
- Sliding Doors
- Open-able Doors
- Bifold Doors
- Automatic Doors
- Sliding Doors
- Swing Doors
(All the doors are available with Single/ DGU/Laminated Glass with Multi Point Locking System)
Facade
- Structural glazing (Unitized & Semi-unitized systems) with Single glass as well Double glass/Laminated glass
- Aluminium composite panel wall cladding
- Spider glazing. Patch Fitting, Glass Canopies
- Louvers-fix/ Opera-table
- Sky Light
Additional Fixture Systems
- Mosquito Sliding
- Alu Seal
Corrosion Resistance
Aluminium narurally generates a protective oxide coating and is highly correosion resistant.
Power coating available in wide range of RAL colors and effects.
About Us
At MAGS our philosophy is simple to create commercial window and door systems that offer streamlined and efficient solutions to the commercial construction and high-end residential market.
connect with us
- 249 Elm Street Lake Jackson, TX 77566
- +91 99742 93086
- mags.brijesh@gmail.com
